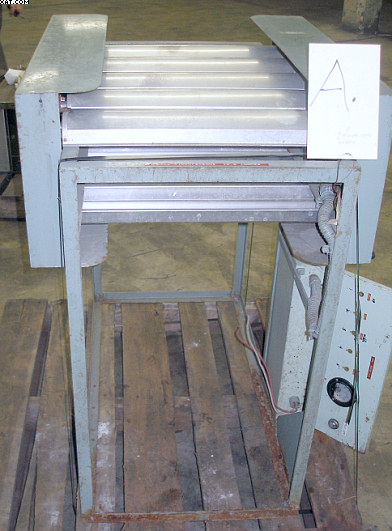

Custom Made, Infra-red dryer,
Item Number11695
Quantity1
MachineCustom Made, Infra-red dryer,
DescriptionUsed for flat goods. Contains top and bottom tiers of 5 heating elements. It is non-driven unit but could be fitted with feed and take-up. Needs toggle switches that control the elements replaced on the control panel. Year is un known. 220v, 1 phase. 21" Quartz heater tube. Coiled Nichrome wire inside. Translucent quartz. Diam 62mm( 5/8") . Tube source temp 1200 deg F. Machine has a 30 amp ampmeter. Working width: 17". OAD: 27" W. x 39" D. x 40 1/2" T. There are five bulbs at the top and 5 bulbs on the bottom.
QuoteAdd To QuoteHelp
Custom Made, Infra-red dryer,
Custom Made, Infra-red dryer,  Custom Made, Infra-red dryer,  Custom Made, Infra-red dryer,  Custom Made, Infra-red dryer,  Custom Made, Infra-red dryer,  Custom Made, Infra-red dryer,
 21" Quartz Heater lamp
