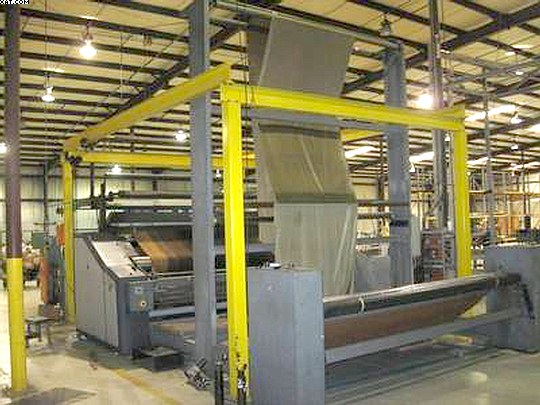

KLIEVERIK Laminating Calender, 126" belt, 1995 yr,
Item Number12425
Quantity1
MachineKLIEVERIK Laminating Calender, 126" belt, 1995 yr,
DescriptionModel TC131, 30" dia. x 138" face cylinder with 126" blanket (nomex), onboard enclosed heating system, includes scray, high entry with E&L KF-2040 guider, operator platform, E&L width monitor, 4-roll accumulator 136" with 12 yd capacity, 2-roll surface take-up with edge guiding and yardage counters. Operating speed of 2-20 mtr/min. This machine employs a vapor phase process to transfer dyestuff from the paper to the cloth under the influence of heat and pressure. The calender drum is heated by electrical elements placed in an oil bath. Diameter of transfer paper roll - 14" Machine speed - Min. - 2 meters/minute Max. - 20 meters per minute Max drum temperature - 220C (464 F) Dia. Heated drum - 760mm - 30.4" Blanket width - 3500mm - 140" OAD of Calender: 112.6" L. x 182.4" W. x 89" T. Approx footprint 28'L x 16'W. Weight - 7,400kg (16,314 lbs).
QuoteAdd To QuoteHelp
KLIEVERIK Laminating Calender, 126" belt, 1995 yr,
KLIEVERIK Laminating Calender, 126" belt, 1995 yr,  KLIEVERIK Laminating Calender, 126" belt, 1995 yr,  KLIEVERIK Laminating Calender, 126" belt, 1995 yr,  KLIEVERIK Laminating Calender, 126" belt, 1995 yr,
