DURCO Big Max 3" Butterfly valve, NEW,
Item Number15213
Quantity1
MachineDURCO Big Max 3" Butterfly valve, NEW,

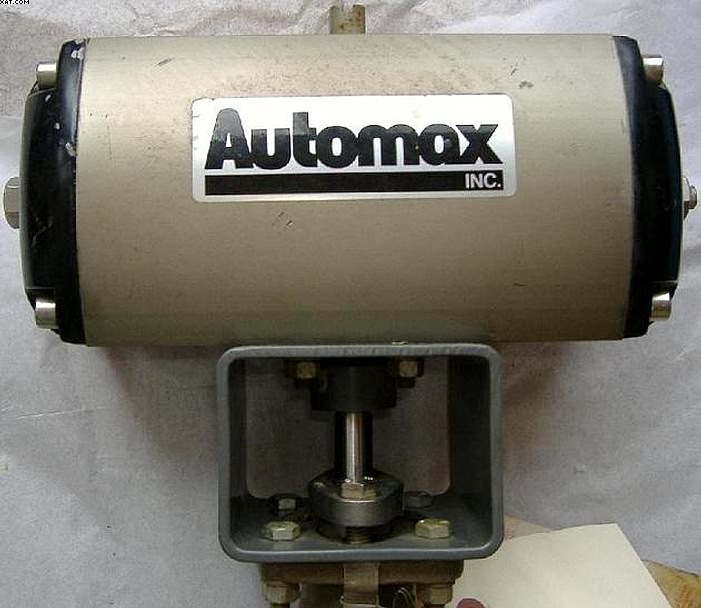

DescriptionHigh Performance Butterfly Valve w/Automax Pneumatic Actuator. Size:3". Body: Lugged, Class: ASME 150 Bidirectional, Body: D4 (ASTM A351 Gr. CF8M) 316 Stainless Steel, Disc: D4 (ASTM A351 Gr. CF8M) 316 Stainless Steel, Shaft: 17-4 Stainless Steel, Bearing: PTFE/Fiberglass, Shaft Seal: Single PTFE Cup & Cone, Seat: PFA/Viton Energizer, Option: NACE Trim, Maximum Shutoff Pressure: 275 PSIG @ 100 Deg. F or 195 PSIG @ 400 Deg. F. Automax SuperNova Model B100S10 Spring Return Pneumatic Rack & Pinion Actuator. Actuator Fails Clock-Wise (FCW).
QuoteAdd To QuoteHelp
