SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.
Item Number15488
Quantity1
MachineSEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.

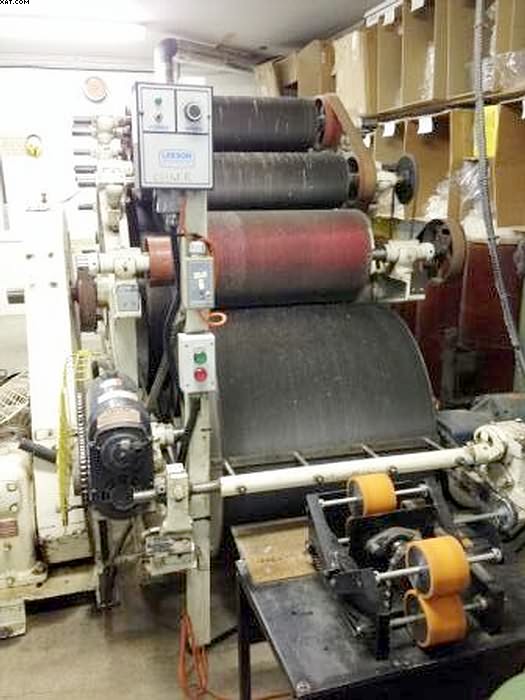

DescriptionComplete mill for processing Merino, Mohair, Alpaca, Llama, Nylon fibers. Consisting of: 36" Proctor Schwartz 12 bar picker ph3 22ov, bear claw teeth. Custom built 3-stainless steel bowl wash system with oil-fired boiler, 20-25 lbs/hr, hydraulic pressure controls. CMC 36" pre-feed used for opening/blending,Teco drive 220v. 18" Rando card feed - 3 AB drives for floor/elevator, stripper, vacuum (refurbished as new by Rando) variable speed on delivery. 24" Davis & Furber card, large Leeson main drive with sequential start. AC variable speeds on; doffer, roving, workers. Metallic wire with roving attachment, batt drum driven by variable speed from card produces 25" x 60" batts & freestanding coiler with separate DC drive. Cans for card coiler. 3650 Warner Swasey 2-head pin drafter, Leeson drive. 3680 Warner Swasey 4-head pin drafter, Leeson drive. Cans for pindrafters. 48 spindle Whitin spinning frame, 24 spindles currently used, with approximately 100 bobbins, 3" rings, 10" traverse, separate Leeson drives on vacuum, spindles & delivery with gearbox, approximately 40 draft gears, 2 rolls spare spindle tape. 28 spindle Leesona 512 twister, 14 spindles currently used - 5 rings 12" traverse, bobbins, approximately 50 twist gears, Leeson drive with reverse function, 2, 3 & 4 ply, many spare parts, newer endless belt. 20 position Leesona cone winder 7 inch, 3 30 & 936 cones with many cones. 3 position Leesona 50 cone winder 7 inch 3 30'. Single position Leesona 50 cone winder 7 inch 3 30'. Saurer Allma fancy spinning frame ESP-X , 4 positions with 16 more positions in storage. Saurer Allma fancy spinning frame in storage, electronics removed & converted to running with 3 - PIV?s, Leeson drive. Pirn winder - modified 3-phase set-up, converts 220 Ph 1 to Ph 3 220v, 380v, 480v, 600v, used for powering picker & Saurers 7 position skein winder, 220v Ph 1 variable speed, 2 yard skeins. Steam box. Belt lacing equipment & supplies. Warner Swasey pindrafter parts, heads, fallers, bearings, gears, pressure rolls etc. Saurer Alma spare parts, cots, aprons, heads, some electronic cards, bearings, tubes etc. 3 Mesdan 923 air splicers & parts.
QuoteAdd To QuoteHelp
SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.
SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.
 SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.
 SEMI-WORSTED Cottage Industry Yarn Mill for Natural Fibres.  Boiler  Boiler  Wash line  Wash line
 Wash line  Wash line
