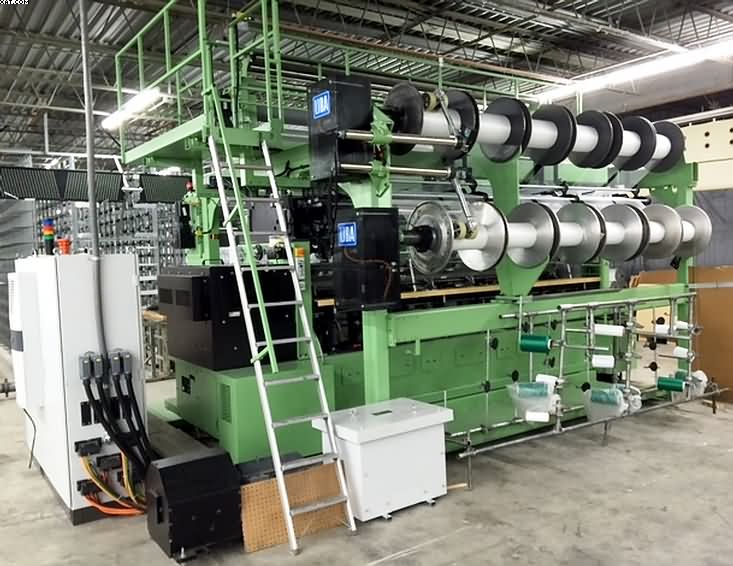

LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,
Item Number15612
Quantity1
MachineLIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,
Descriptiondouble needle bar with 6 guide bars and beam frame for 2 beams and 2 delivery rollers, working width: 330 cm/ 130", gauge E 18. STANDARD VOLTAGE / FREQUENCY 480V / 60Hz / 3Ph. AIR SUPPLY Standard 6 bar, 90 PSI MACHINE FRAME Integral one-piece welded steel base, vulkulan damped machine feet DRIVE TO THE KNITTING ELEMENTS Coupling gears in the closed machine frame YARN PATH (YARN DIRECTING AND TENSIONING DEVICE) Springloaded tension compensating bars, diversion profile. Diversion bars (stationary). 4 separators in upper position 4 separators in bottom position BEAM SHAFTS 2 shafts 4" (114 mm ) PATTERN DRIVE ELS ? max movement 50 mm, all bars (6x) MAIN DRIVE Squirrel cage motor, electronic frequency transformer for continuous speed control, with integrated soft start and adjustable run-off, as well as inching equipment. Machine operation 10,4? colour display (touch screen) with multilingual and user-friendly interface. Selectable display readout arrangement for yarn let off, RPM, machine temperature, 6- shift counter, remain time to stop, etcetera. Selectable units (metric/imperial) TAKE-UP Three roller take-up system, with stepless adjustment of the wrapping angel. EAC for setting the take-up speed. FABRIC WIND-UP Type no. 8, central winder in front of the machine, tension controlled via dancer roller with separate gear motor. Gangway in front, between machine and wind-up. With aluminum mandrel. KNITTING ELEMENTS 6 guide bars with guides, hard chrome plated (1" leads), lateral motion 2" (50 mm) 2 latch needle bars with milled 3"-segments and individually inserted latch needles 2 trick plates, for all trick plate distances the swing can be set by simple stroke adjustment of the intermediate lever resp. 2 stitch comb bars with stitch comb sinkers (1" leads) BEAM FRAME STANDING SEPARATELY: Pos. 1-2: for sectional beams up to 32" flange diameter Pos. 5-6: for delivery rollers DISTANCE SETTING Central horizontal distance setting. The distance between knock-over edge and guide needle remains unchanged, no setting higher of the guide needle is necessary. YARN LET-OFF SYSTEM Position 1 - 2: EBA multi speed, yarn let-off with servo motors and automatic letoff stop for sectional beams on beam shafts. Position 5 - 6: EBA multi speed, yarn let-off with servo motors for delivery rollers.
QuoteAdd To QuoteHelp
LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,
LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,  LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,  LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,  LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,  LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,  LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,
 LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,  LIBA Raschel Machine, Rasant DG 506-30 DPLM, 2013 yr,
