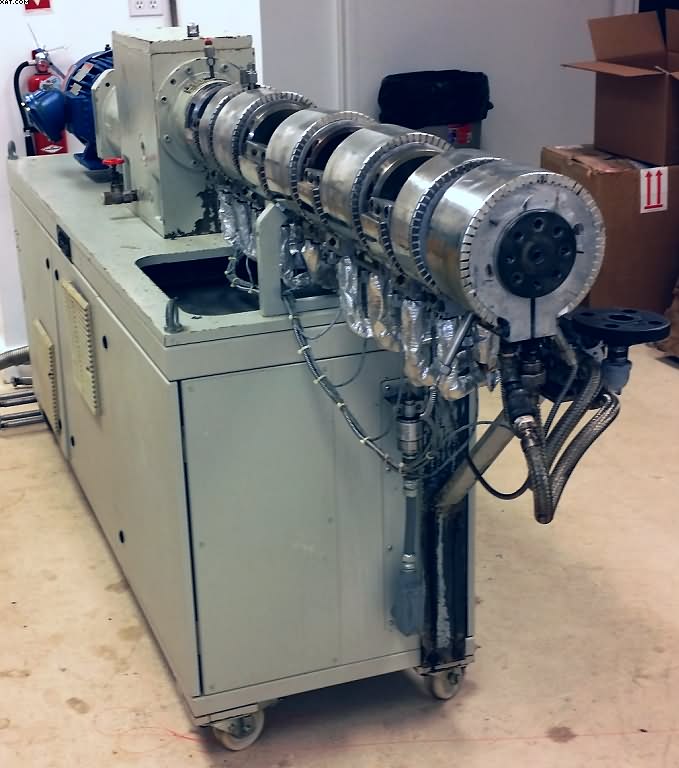

|BERSTORRF Twin Screw Extruder, model ZE 25Rx44D, 25mm|
|Machine||BERSTORRF Twin Screw Extruder, model ZE 25Rx44D, 25mm|
|Description||co-rotating intermeshing screws, 44:1 L/D ratio, 2002 yr, with a Flender gearbox. Hot oil temperature controlled, with vacuum pump and adjustable vacuum venting manifold with quick clamps, ten barrel sections, four open barrel sections with bolt on blanks, including for the main feed, two bolt on stacks for the open sections to adapt feed or vent options, with top sight glasses included, 10 HP AC motor with Reliance variable speed drive, Budzar 3-zone temperature control unit, 16 spare unused screw elements and misc other spare parts.
The machine was run 80 hours on optical fiber acrylic materials both solid and gel-state. Then the company went bankrupt. After the new firm acquired it they never put it into service. It is beautiful.
The unit has no side feeder or control panel.|
