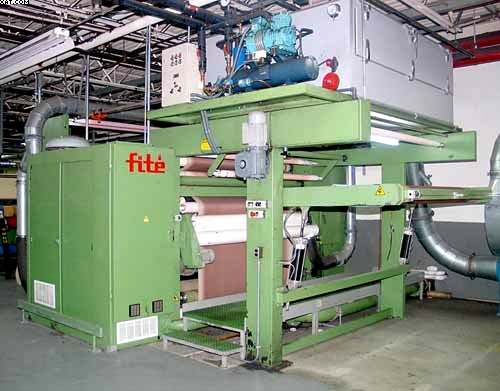

FITE Continuous Decater, 1800 mm wide, model BBB-771-1800,
Item Number16537
Quantity1
MachineFITE Continuous Decater, 1800 mm wide, model BBB-771-1800,
Description1998 yr. Currently in storage. Seller reports some minor sheet metal damage on covers that happened during moving but otherwise machine is in good condition. The Continuous Decatizing Machines Type BBB have been designed for finishing textile materials, to provide a high quality appearance and handle while processing a wide variety of fabric types (woollen, worsted, wool mixtures, polyester, viscose, silk, rayon, linen fabrics, acrylic fabrics and others). The useful working width and constructional details are specified in the table showing the technical features for a specific model. TECHNICAL FEATURES GENERAL Useful cloth width (max. working width): 1.800 / 2000mm. Endless felt width: 2.000 / 2200 mm. Diameter of the main decatizing cylinder: 1.200 mm. Width of the main decatizing cylinder 2.100 mm. Working speed: 0 to 30 m/min. ELECTRICAL EQUIPMENT Input voltage AC, 3 phase 480 V. 60 Hz. Installed power 56 kW. Average consumption: 32 kW. Input line: 3 x 25 mm2 + Neutral + Earth 25 mm2 Recommended external line protection: 125 A. Fuses or automatic switch. Recommended external differential switch: Sensitivity 300 mA (0,3 A). STEAM SYSTEM Inlet pressure: 3 Kg/cm2 Maximum consumption: 600 Kg/h Steam quality: Dry saturated steam. COMPRESSED AIR SYSTEM Minimum inlet pressure 6 bar Average consumption 100 Nl/min. REFRIGERATION UNIT Compressor power 3 kW. Approx. cold-producing power. 6.500 frig./hour Freezing gas: R-134 Cooling air flow 2.800. m3/h. Evaporation temperature -10o C. Mín. cooling water inlet pressure 1 Kg/cm2. Max. cooling water consumption 1.960 l/h. SUCTION PUMP Motor power 25 kW. Aspirated flow 65 m3/min. Maximum depression 150 mbar (1.500 mm. w.c.)
QuoteAdd To QuoteHelp
FITE Continuous Decater, 1800 mm wide, model BBB-771-1800,
FITE Continuous Decater, 1800 mm wide, model BBB-771-1800,  FITE Continuous Decater, 1800 mm wide, model BBB-771-1800,  FITE Continuous Decater, 1800 mm wide, model BBB-771-1800,  FITE Continuous Decater, 1800 mm wide, model BBB-771-1800,
