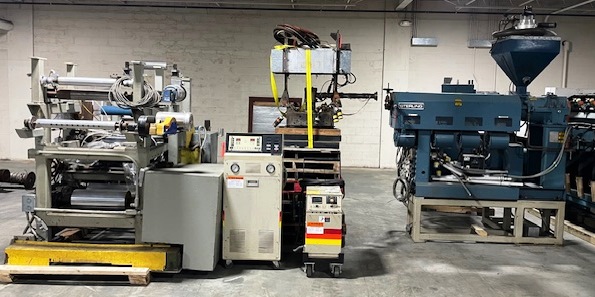

Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,
Item Number16691
Quantity1
MachineSterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,
Description91 mpm speed, equipped with: 20" maximum diameter single position primary unwind (3" cores, manual edge guide), 6.0 Kva Pillar single-sided corona treater, load cell roll, splice board, dancer roll, pull roll section with 4" diameter pull roll and 2.5" diameter rubber-covered nip roll, load cell roll, (3) Chestnut gravure print stations with 8 feet of gas-fired dryer over each station, (1) Chestnut print station/cold seal unit with 12 feet of gas fired dryer, chill/pull roll station (with (2) 6" diameter chill rolls and 2.5" rubber-covered nip roll), load cell roll, laminator (20" face x 20" diameter chill roll, 6" diameter rubber-covered roll, 8" diameter backup roll), Sterlco unit to heat or chill backup roll, dancer section, two (2) 8" diameter secondary chill rolls, 20" maximum diameter secondary unwind (3" cores, safety chucks), load cell roll, 5 Kw Pillar single-sided corona treater, load cell roll, flex spreader roll, Erhardt+Leimer electric edge guide with ultrasonic sensors, pull roll section (3.25" diameter driven roll, 2.5" rubber-covered nip roll), 20" maximum diameter rewind (3" cores), 3 layer extrusion section with capability to add two additional extruders for 5 layers, (1) 2" Sterling carriage-mounted extruder (25 HP, electrically heated, fan-cooled, 30:1 L/D, infeed hopper, Whitlock vacuum receiver), (2) 1.25" Wayne extruders for mounting to Sterling carriage (24:1, air cooled, 5 HP, drives & controls in portable cabinet with leads), Cloeren 5 layer feedblock with 6 plugs, 16" Cloeren 3 cavity die, Sterlco temperature controller, Application Engineering model DSW-5-CH chiller, Allen-Bradley 1250 HMI, Allen-Bradley PowerFlex 755 AC Drives, Allen-Bradley CompactLogix PLC, Pillar Ozonator, explosion-proof mixer with hood, spare parts (20" diameter chill roll, three print decks, anilox rolls, gravure rolls, rubber-covered rolls, nip rolls). 19 different possible web path configurations programmed in HMI for automatic set up.
QuoteAdd To QuoteHelp
Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,
Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,  Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,  Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,  Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,  Sterling Lab Extrusion Coater Laminator, 3 layer, 381mm wide,
