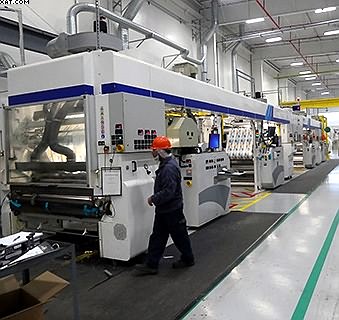

|NORDMECCANICA Triplex SL Solventless Coater Laminator,|
|Machine||NORDMECCANICA Triplex SL Solventless Coater Laminator,|
|Description||One Shot Matic, 2012 year with very little run time, (1500mm (59") maximum web width, 1300 fpm (396 mpm). Capable of laminating three film or sheet webs coming from three separate unwinds, while coating two of the film webs with solventless adhesive and re-winding the laminate material on a fourth rewind. Includes various width adhesive application rolls and parts. Last used to laminate expanded foam sheet to BOP film.
Equipped with #1 40" maximum diameter turret unwind with automatic splicer (5 - 88 PLI tension), edge guide, corona treater, #1 solventless 5-roll coating head with World mixer, #2 40" maximum diameter turret unwind with automatic splicer, edge guide, corona treater, #1 laminator, #2 solventless 5-roll coating head with World mixer, #3 40" maximum diameter turret unwind with automatic splicing, edge guide, corona treater, #2 laminator, 40" maximum diameter turret rewind with automatic roll change (11 - 121 lb tension), Siemens AC motors and drive system, Siemens S7 PLC, HMI, all software on backup, all documentation and drawings, some spare parts. 480/3/60 power. 310 amp load with 400 amp switch. Approximate dimensions: 73' L x 11" W x 13' H. Only ~ 6000 hrs run time.
The triplex line is designed to run low tensions as most of the idler rolls throughout the line are driven and all three turret unwinds are driven. The tension specs for the line are:
Unwinds: Minimum - 4.4 lbs, 2 kg, 20 N and Maximum - 88 lbs, 40 kg, 400 N.
Rewind: Minimum - 8.8 lbs, 4 kg, 40 N and Maximum - 121 lbs, 55 kg, 550 N.
Rewind taper tension can be sent from 0 - 60%
Minimum tension for a full web width of 59" / 1500mm is 0.075 PLI / 0.0013 kg/mm / 0.013 N/mm. This is a rather low tension range for a coater laminator and should make it possible to run most lightweight, extensible products.|
