A.CELLI Spooling System, 2018 yr.
Item Number17250
Quantity1
MachineA.CELLI Spooling System, 2018 yr.
DescriptionCANTILEVERED UNWIND STAND: Max master roll diameter 1800mm. Min/max roll width 400-1200mm. Max master roll weight 300-600 kg . Unwinding spool diameter 2x6" , designed for 3", 6", 6.75". Unwinding tension 10-150N . Automatic ultrasonic splicing. SLITTING SECTION: Shear tangential "Slitto" system. Dienes knife holder. Slitting width from 35-150mm. REWIND STAND: 6 spooling heads. Finished reel diameter 1200mm max. Finished reel min/max width 400-850mm. Max roll weight 150 kg. Rewinding tension 3-15N. Contact pressure roll range 0-400N. Automatic web guiding system. Like new!

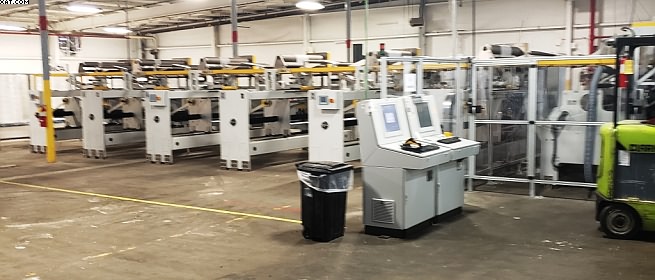

A.CELLI Spooling System, 2018 yr.
A.CELLI Spooling System, 2018 yr. A.CELLI Spooling System, 2018 yr. A.CELLI Spooling System, 2018 yr. A.CELLI Spooling System, 2018 yr.
