TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm
Item Number17468
Quantity1

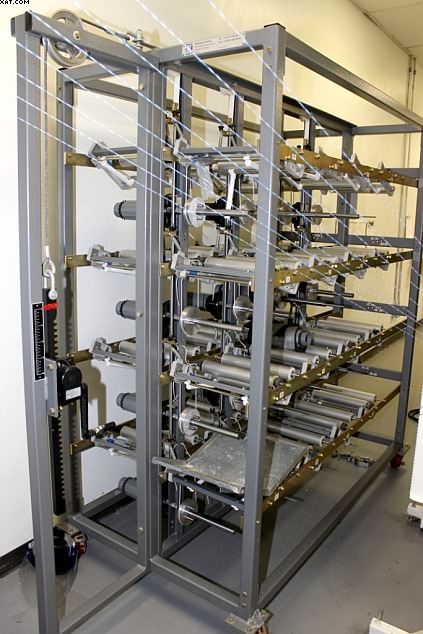

MachineTEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm
Description(~3.25" x 11.5") heavy duty package holders with roller bearings, double sided configuration with each side having 4 over 4 positions, portable on casters. Designed for running heavy packages at high speed. PFAFF full frame tension adjustment (1.0 t and 0.6 lift). Used to adjust tension as package size decreases. Creel also has an additional tensioning assembly for individual package control. See photo showing compensator - The end runs over roller 1, under roller 2, and over roller 3. Roller 2 is connected to the compensator arm (Marked C). When used in operation the compensator arm moves up and down to maintain the tension in a narrow range. If an end breaks, the compensator arm will drop and apply a brake. This is needed for heavy packages to stop the yarn from overrunning. Creel appears in excellent condition. OAD 100"L x 40" x 90"H (including casters). NOTE: 11 holders missing ? Replacement cost per Texkimp is ~$80 each or less depending upon if others are being made at the same time. Original cost reported as being ~$70k.
QuoteAdd To QuoteHelp
TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm
TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm
 TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm  TEXKIMP Unrolling Creel, 32 positions, ~82mm x 280mm
