DURCO 3" BX2 High Performance Butterfly Valve,
Item Number	15212
Quantity	1
Machine	DURCO 3" BX2 High Performance Butterfly Valve,

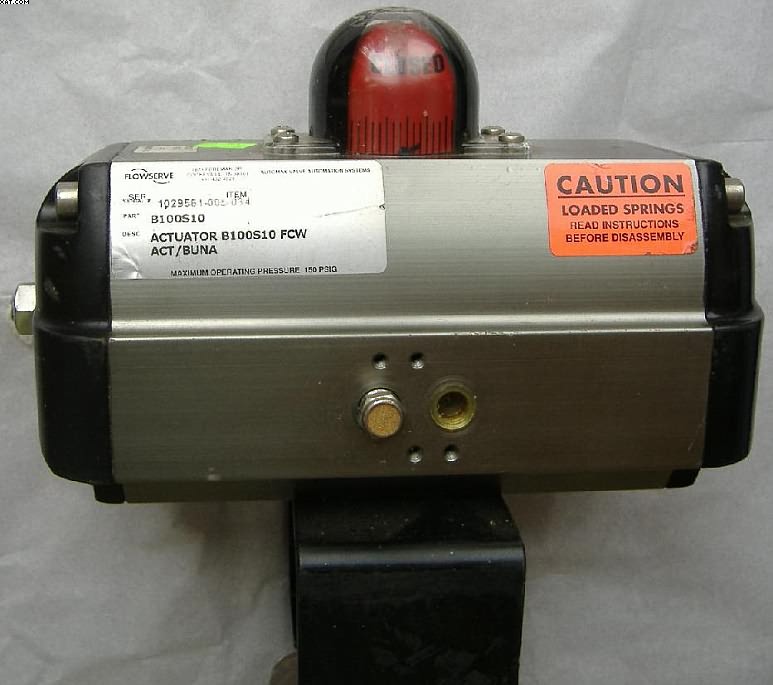

Description	with Automax Pneumatic Actuator -NEW. Flowserve Durco Model: 3-BX2-L-1-111A-1-V-9-N-Z/S100SR10 (S/N 62204) Big Max High Performance Butterfly Valve. Size: 3". Body: Lugged, Class: ASME 150 Bidirectional, Body: D4 (ASTM A351 Gr. CF8M) 316 Stainless Steel, Disc: D4 (ASTM A351 Gr. CF8M) 316 Stainless Steel, Shaft: 17-4 Stainless Steel, Bearing: PTFE/Fiberglass, Shaft Seal: Single PTFE Cup & Cone, Seat: PFA/Viton Energizer, Option: NACE Trim, Maximum Shutoff Pressure: 275 PSIG @ 100 Deg. F or 195 PSIG @ 400 Deg. F. Automax SuperNova Model B100S10 Spring Return Pneumatic Rack & Pinion Actuator. Actuator Fails Clock-Wise (FCW). (S/N 1029561-005-034).
Quote

Please feel free to Contact Us with any
Questions or Equipment Inquiries. Thank You!
